Milesight ISIS-MS-PM3322-E 6MP Parking Camera

Milesight ISIS-MS-PM3322-E 2x3 Megapixel Dual HD Parking Management IP Camera with AI Occupancy Detection for 6 Parking Spaces, Status Lighting Green Red Blue, License Plate Recognition and WDR 120 dB

The Milesight ISIS-MS-PM3322-E is the powerful 2x3 Megapixel Dual HD Parking Management IP Camera. It delivers high-definition video images with two cameras in one unit, each with 2048 by 1536 pixels. The camera was specially designed for efficient and intelligent parking management and features an AI-based algorithm that detects three parking spaces on each side. Two lenses with a 106-degree field of view each enable complete monitoring of six parking spaces simultaneously. The integrated status lighting immediately shows drivers whether a parking space is available and marks special spaces.

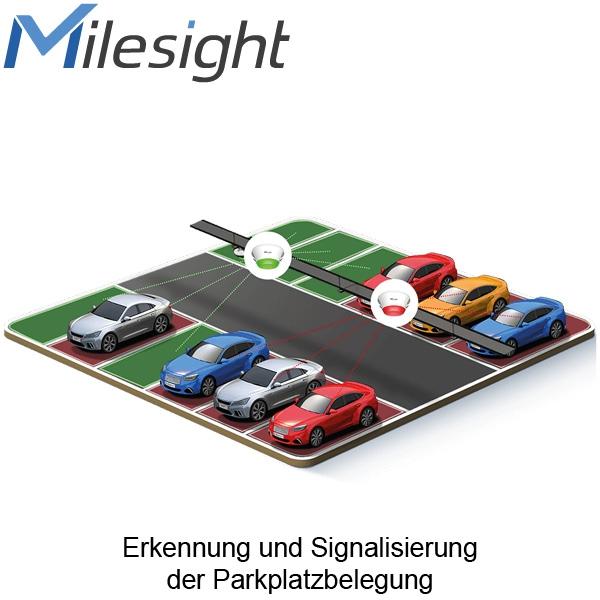

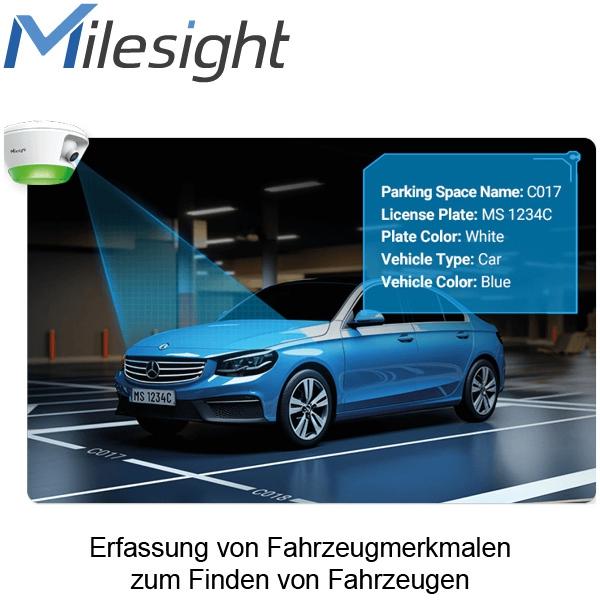

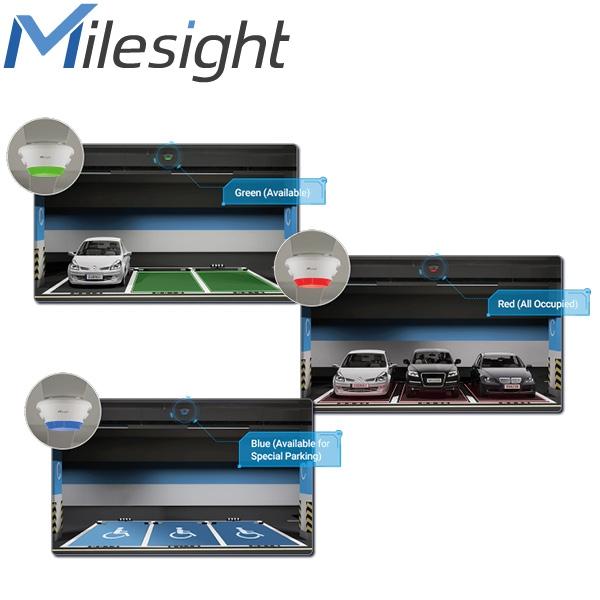

The camera detects on both sides whether parking spaces are free or occupied and indicates this by color. As soon as all six parking spaces on both sides are occupied, it signals this with a red light. Green means at least one free parking space. Red means no vacant parking spaces. Blue identifies free special parking spaces such as for people with disabilities. In addition to monitoring parking occupancy, the camera captures license plates, plate color, vehicle type, and vehicle color. If a guest no longer remembers the exact location of their vehicle, its exact position can be determined using these features. The detection rate for parking occupancy exceeds 99 percent. License plate recognition achieves over 98 percent, and vehicle features exceed 95 percent. More than 60 countries and regions are supported. The camera can be connected in series so that multiple units work seamlessly together.

The Milesight ISIS-MS-PM3322-E masters challenging lighting conditions with WDR up to 120 dB. Bright and dark areas remain detailed and high in contrast. The H.264 video codec reduces network traffic and significantly increases recording time. Modern compression technology transmits only image changes, extending recording duration by up to 80 percent. The camera is IP65 weatherproof and equipped with 6 kV surge protection. This protects it against moisture, dust, and voltage spikes, allowing it to be used indoors or outdoors. NDAA compliance facilitates cooperation with U.S. authorities. Dimensions are 97.5 by 160 millimeters, and weight is 500 grams. The camera operates with 12 Volt DC or dual PoE and consumes a maximum of 8 watts.

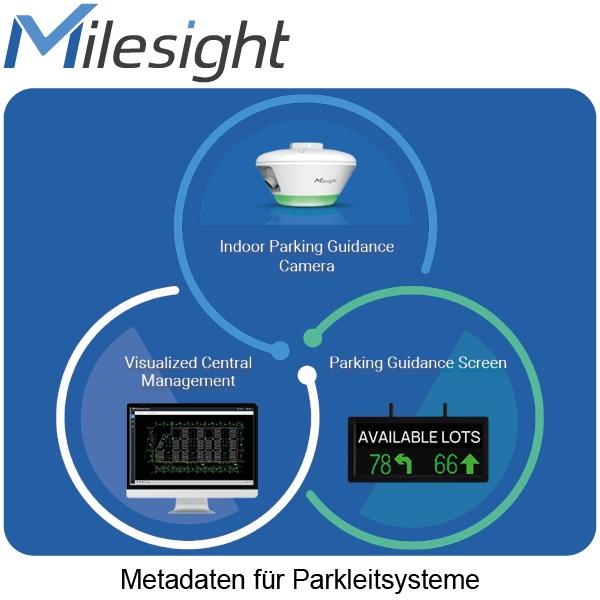

The flexible configuration allows customization of areas and numbering. The status lighting provides practical information and assists drivers in locating parking spaces. The camera is compatible with ONVIF, RTSP, and many other protocols, enabling easy integration into existing systems. Image functions include WDR up to 120 dB, brightness, contrast, saturation, and sharpness. Video streaming is performed at a resolution of 2048 by 1536. The network interface provides dual 10/100 Ethernet. Audio output and power supply are available. The operating temperature ranges from minus 40 degrees Celsius to plus 60 degrees Celsius with 5 to 90 percent humidity.

Why the Milesight ISIS-MS-PM3322-E is the Best 2x3 Megapixel Parking Management IP Camera:

• 2x3 Megapixel Dual HD with 2048 by 1536 pixels per camera
• AI-based parking management with occupancy detection for six parking spaces
• Status lighting in green, red, and blue for free and special spaces
• Detection of license plate, vehicle type, and vehicle color
• Two lenses, each with a 106-degree field of view
• Dual-sided monitoring and serial connection of multiple cameras
• WDR up to 120 dB for clear images in strong backlight
• IP65 weatherproof with 6 kV surge protection
• H.264 video codec for optimal bandwidth and storage efficiency
• NDAA compliant and robust construction
• Detection rates above 99 percent for occupancy
• Integrated status lighting for intuitive driver guidance

Technical Data:

• Resolution: 2048 by 1536 per camera
• Focal length: 2.8 millimeters
• Viewing angle: 106 degrees horizontal
• WDR: up to 120 dB
• Parking occupancy: six parking spaces simultaneously
• License plate recognition: more than 60 countries, over 98 percent accuracy
• Vehicle features: over 95 percent accuracy
• Compression: H.264
• Network: dual 10/100 Ethernet
• Power supply: 12 Volt DC or dual PoE
• Housing: IP65 weatherproof
• Dimensions: 97.5 by 160 millimeters
• Weight: 500 grams

Perfectly Suitable For:

• Parking garages and outdoor areas
• Shopping centers and supermarkets
• Industrial and logistics centers
• Public buildings and schools
• AI-based intelligent parking management
• Integration into existing systems
• Occupancy display with color status lighting
• Vehicle data capture and location search

Easy Installation and Commissioning

The camera is quickly installed thanks to its dual lenses and compact design. The status lighting immediately displays occupancy status and assists drivers in searching. The AI algorithm measures precisely and provides data for external systems. Connecting multiple cameras in series enables coverage of large parking areas. WDR ensures clear images under all lighting conditions. IP65 protection and 6 kV surge protection guarantee long-lasting outdoor performance. NDAA compliance and high recognition rates make the camera the ideal solution for modern parking management.
