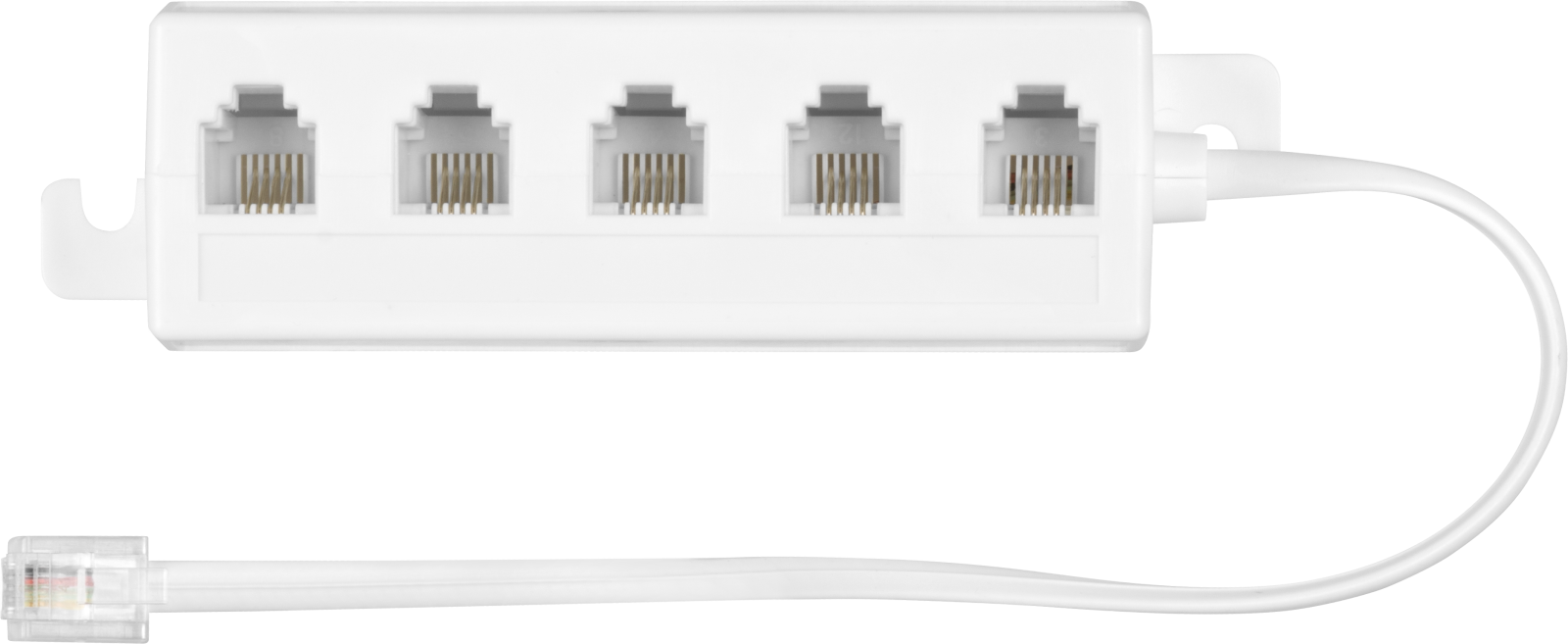

Poseidon T-Box RJ11
€31.60
The 1-Wire distributor for up to 5 sensors on one Poseidon or Ares port
The HW group Poseidon T-Box RJ11 is a passive hub for connecting sensors via the 1-Wire bus to devices of the Poseidon2 and Ares 10/12 family. The 1-Wire bus is carried via standard telephone cables and RJ11 connectors (or RJ12). The T-Box splits a single RJ11 port of a Poseidon or Ares device into up to 5 sensor ports.
As long as the maximum permissible total cable length of the 1-Wire bus is observed, multiple T-Box hubs can also be connected in series in order to connect even more sensors to a single port. The Poseidon T-Box RJ11 is offered as a single version – there are no variants or options.
One port becomes five – simple and passive
The T-Box is a purely passive distributor without its own power supply or electronics in the true sense.
Hub for the RJ11 bus
Splits the 1-Wire bus of a single RJ11 port on the Poseidon or Ares device into 5 separate connections.
Up to 5 sensors per port
Up to 5 1-Wire sensors can be connected simultaneously to a single active RJ11 port of the Poseidon or Ares device via the T-Box.
Connectable in series
Multiple T-Box hubs can be connected one after the other, as long as the permissible total cable length of the 1-Wire bus is not exceeded.
Compatible with Poseidon & Ares
Usable with devices of the Poseidon family (including Poseidon2) as well as with the Ares 10/12 models from HW group.
How the Poseidon T-Box RJ11 is designed
The small plastic housing (approx. 116 x 55 x 37 mm, approx. 36 g) is designed for simple use in technical and server rooms and is suitable for operating temperatures from -30 °C to 70 °C (0–100 % RH) as well as a storage environment of -30 °C to 60 °C (5–95 % RH).
Compact plastic housing
Lightweight, freestanding housing without its own electronics or power supply – the T-Box operates purely passively as a cable distributor for the 1-Wire bus.
One RJ11 input to the Poseidon/Ares device
One RJ11 connection links the T-Box to an active 1-Wire port of the Poseidon or Ares device and feeds the bus into the housing.
Five RJ11 outputs for sensors
Five further RJ11 connections distribute the incoming 1-Wire bus to up to 5 external 1-Wire sensors, which are connected via telephone cable.
Cascadeable
A further T-Box hub can be connected to one of the five outputs in order to further increase the number of sensor connections – limited by the permissible total length of the 1-Wire bus.
Suitable for the Poseidon and Ares product family
The T-Box was specifically developed for connection to 1-Wire-capable RJ11 ports of the following device families.
- Poseidon2 (including Poseidon2 3268, Poseidon2 3468, Poseidon2 4002)
- Ares 10 / Ares 12
- Earlier Poseidon generations with RJ11 1-Wire connection
Connection in just a few steps
The T-Box requires no configuration of its own and is integrated purely physically into the cabling.
- Connect the T-Box with an RJ11 telephone cable to an active 1-Wire port of the Poseidon or Ares device
- Connect up to 5 external 1-Wire sensors to the free RJ11 connections of the T-Box
- If more than 5 sensor connections are required, connect a further T-Box hub in series to a free output
- Always observe the maximum permissible total cable length of the 1-Wire bus of the respective Poseidon/Ares device
- The connected sensors appear automatically in the configuration interface of the Poseidon or Ares device
Why the Poseidon T-Box RJ11 is the right choice
Simple expansion
One RJ11 port becomes five – without additional configuration.
Passive & maintenance-free
No separate power supply or software required.
Cascadeable
Multiple T-Boxes can be connected in series.
Compact & lightweight
Small housing weighing only approx. 36 g.
Wide compatibility
Suitable for Poseidon2 and Ares 10/12 devices.
24-month warranty
According to the manufacturer with 24 months warranty from the date of purchase.
Practical application examples
- Connection of multiple temperature sensors to a single Poseidon port
- Expansion of an Ares 12 device with additional 1-Wire sensors
- Setup of branched sensor networks in monitoring systems
Practical example: On a Poseidon2 device, a single RJ11 port is to monitor several temperature sensors in different areas of a server room at the same time. Instead of connecting each sensor individually to its own port, a Poseidon T-Box RJ11 is inserted which distributes the port to up to 5 sensor connections. If even more sensors are required, a further T-Box can be connected in series to one of the free outputs.
Frequently asked questions
What is the HW group Poseidon T-Box RJ11 and what is it used for?
The Poseidon T-Box RJ11 is a passive hub that splits a single RJ11 1-Wire port of a Poseidon or Ares device into up to 5 sensor connections. It is used when more 1-Wire sensors need to be connected than the port of the device directly provides.
Are there different variants or options?
No. The Poseidon T-Box RJ11 is offered as a single version. There are no variants or options for this accessory.
How many sensors can be connected via one T-Box?
One T-Box splits an active RJ11 port of the Poseidon or Ares device into up to 5 sensor connections. If more connections are required, multiple T-Box hubs can be connected in series, as long as the permissible total cable length of the 1-Wire bus is observed.
Which devices is the T-Box compatible with?
The T-Box is designed for connection to devices of the Poseidon family (including Poseidon2) as well as to the Ares 10/12 models from HW group that have a 1-Wire-capable RJ11 port.
Does the T-Box require its own power supply or configuration?
No. The T-Box is a purely passive cable distributor without its own power supply or software configuration. Connected sensors are automatically detected via the respective Poseidon or Ares device.
Can multiple T-Boxes be combined?
Yes. As long as the maximum permissible total cable length of the 1-Wire bus of the respective Poseidon or Ares device is not exceeded, multiple T-Box hubs can be connected in series in order to further increase the number of sensor connections.
Questions about the Poseidon T-Box RJ11?
Our support team in Germany advises you free of charge on selection, sensors and configuration.
HW-Group Poseidon T-Box RJ11
General Data
- Hub for connecting sensors via the 1-Wire bus
- Suitable for Poseidon2 and Ares10/12 device families
- 1-Wire bus via telephone cable and RJ11 connector
- Allows up to 5 sensors to be connected to one Poseidon device
- Multiple T-Boxes can be connected in series provided that the maximum total cable length is observed
Connections
- RJ11 hub for the 1-Wire bus
- Splitting of the RJ11 bus across 5 connections
- Suitable for connecting multiple sensors to one Poseidon device
Compatibility
- Poseidon2
- Ares10/12
- Poseidon2 3268
- Poseidon2 3468
- Poseidon2 4002
Applications
- Hub for the RJ11 bus
- Use in monitoring systems
- Connection of multiple 1-Wire sensors to Poseidon devices
Environmental Conditions
- Operating temperature: -30 to +70 °C
- Operating humidity: 0–100% RH
- Storage temperature: -30 to +60 °C
- Storage humidity: 5–95% RH
Mechanical Data
- Dimensions: 116 × 55 × 37 mm (W × H × D)
- Weight: 36 g
Additional Data
- Warranty: 24 months
