Temp-1W-UNI Pt100 Frost – Low-temperature sensor
€383.90
The Pt-100 low-temperature sensor with 1-Wire-UNI output
The HW group Temp-1W-UNI Pt100 Frost is a Pt-100-based low-temperature sensor with a 1-Wire-UNI output. It includes a Pt-100 temperature probe (-190°C to +150°C, PTFE-sheathed cable, 2 m, Pt100/B) and a 1-Wire-UNI converter (Converter 2xPt100 1W-UNI). A second Pt-100 or Pt-1000 probe can be connected to the converter.

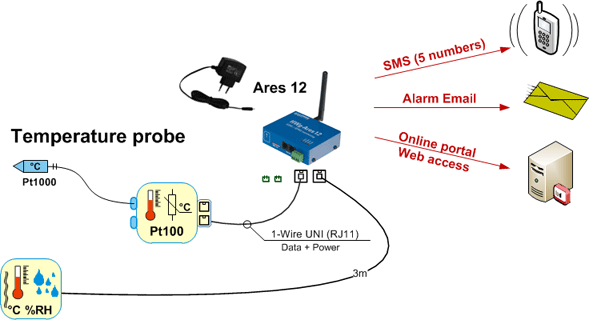

The converter automatically detects Pt100 and Pt1000 probes and supports the connection of external probes with 2, 3 or 4 wires. The measured values can be transmitted via a connected Poseidon2, Ares or Perseus device over LAN or GSM/LTE.
Precise low-temperature measurement from -190°C to +150°C
The Temp-1W-UNI Pt100 Frost provides two measured values via the 1-Wire-UNI bus and is particularly suitable for very low temperatures.
Pt-100 probe (-190°C to +150°C)
Supplied Pt-100 probe (class Pt100/B) with PTFE-sheathed 2 m cable, suitable for very low temperatures down to -190°C.
2nd probe connection (Pt100/Pt1000)
The integrated Converter 2xPt100 1W-UNI allows the connection of a second Pt-100 or Pt-1000 probe with automatic detection.
2/3/4-wire connection
External probes can be connected with 2, 3 or 4 wires as required; the 4-wire connection offers the highest measurement accuracy, especially with longer cables.
Daisy-chain via 2x RJ11
Two RJ11 connections on the converter allow further 1-Wire sensors to be chained on the same bus.
8-point calibration
The converter can be calibrated at 8 points along the measuring curve; calibration protocols for a specific probe are available at an additional cost.
Bus-powered
Powered directly via the 1-Wire-UNI bus (RJ11), no separate power supply required.
How the Temp-1W-UNI Pt100 Frost is designed
The converter housing measures approximately 79 x 68 x 30 mm (W x H x D) and weighs about 197 g, with an IP23 protection rating. Operating conditions: -30°C to +85°C at 0–100 % RH (storage: -30°C to +60°C, 5–95 % RH).
Pt-100 probe with PTFE cable
The supplied Pt-100 probe (Pt100/B) is equipped with a PTFE-sheathed 2 m cable and measures temperatures from -190°C to +150°C.
Converter housing with 2x 4-pin terminal block
The converter has two 4-pin terminal blocks (channel 1: pins 1–4, channel 2: pins 5–8) for connecting up to two Pt100 or Pt1000 probes in 2-, 3- or 4-wire technology.
2x RJ11 (1-Wire UNI)
Two RJ11 connections link the converter to a compatible HW group device (Poseidon2, Ares, Poseidon 2250, Poseidon 4002, SiteMon5) and allow daisy-chaining of further sensors. Maximum cable length: 60 m from the active port.
Power supply via the 1-Wire-UNI bus
The converter is supplied with 5 V via the 1-Wire-UNI bus and requires approximately 20 mA. One active RJ11 port can supply a maximum of two converters; for power boosting, the manufacturer recommends the “1-Wire hub Power”.
No galvanic isolation
The 1-Wire-UNI bus is not electrically isolated from the temperature probes; appropriate precautions must be taken when wiring.
Technical measurement data
- Measuring range: -190°C to +150°C
- Accuracy: ±0.3°C in the range -50°C to +150°C; ±0.6°C in the range -190°C to -50°C
- Resolution: 0.10°C
- Technology: PT100/PT1000
- Cable length of the supplied probe: 2 m
- Number of values delivered: 2
- Calibration points: 8
- Measuring rate: once per second
- Standard display unit: [°C] – conversion to other units available on request from the distributor
For a class A Pt100 element, for example, the overall accuracy is ±0.55°C at 0°C, ±0.75°C at 100°C and ±2.25°C at 700°C (in each case at a converter temperature of +25°C) – the overall accuracy is made up of the converter and probe precision.
Which devices are supported
- Compatible with Poseidon2 devices, Ares devices, Poseidon 2250, Poseidon 4002 and SiteMon5
- Not compatible with Poseidon1 products, HWg-STE (incl. HWg-STE PoE) or HWg-STE plus
- The converter counts as two sensors in a Poseidon2 device
- If only one probe is connected, the second channel either displays -999.9 (not connected) or switches off automatically
Commissioning in a few steps
The Temp-1W-UNI Pt100 Frost is detected and configured directly via the connected HW group device.
- Connect the Pt-100 probe to the converter (already pre-wired in the scope of delivery)
- Optional: connect a second Pt-100 or Pt-1000 probe in 2-, 3- or 4-wire technology to the second channel
- Connect the converter via RJ11 cable to a compatible Poseidon2, Ares, Poseidon 2250, Poseidon 4002 or SiteMon5 device
- Optional: connect further 1-Wire sensors in series via the second RJ11 port
- Have the probes automatically detected by the connected device and configure them via its web interface
- Set limit values and the desired alarm types (e-mail, SMS, call)
Why the Temp-1W-UNI Pt100 Frost is the right choice
Extremely low temperatures
Measures reliably down to -190°C.
Two probes possible
A second channel for Pt100 or Pt1000.
8-point calibration
High measurement accuracy over the entire measuring curve.
Flexible wiring
2-, 3- or 4-wire connection depending on requirements.
Ready for immediate use
Pt-100 probe already included in the scope of delivery.
24 months warranty
According to the manufacturer with 24 months warranty from the date of purchase.
Practical application examples
- Industrial systems with precise temperature measurement
- Cooling systems with permanently installed temperature sensors
- Accurate temperature measurement over a wide range
- Large-area measuring systems with many measuring points
- HVAC and environmental measurement in smart buildings
- Independent measurements in food and harvest storage
- Food processing plants and warehouses with difficult measuring conditions
- Temperature monitoring in pharmaceutical storage facilities

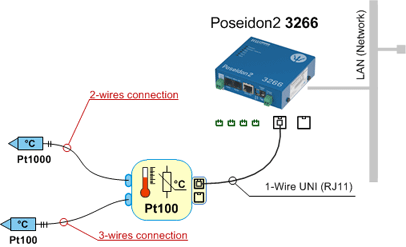

Practical example: In a deep-freeze facility, the supplied Pt-100 probe of the Temp-1W-UNI Pt100 Frost is connected via three wires and linked to a Poseidon2 3266 device. The second channel of the converter additionally measures the temperature in an adjacent storage room via a Pt1000 probe with 2-wire connection. The Poseidon2 device sends an e-mail or SMS as soon as one of the two temperatures leaves the defined safe range.
Frequently asked questions
What is the HW group Temp-1W-UNI Pt100 Frost and what is it used for?
The Temp-1W-UNI Pt100 Frost is a Pt-100-based low-temperature sensor with a 1-Wire-UNI output for measurements down to -190°C. It is used in cooling systems, food and pharmaceutical storage facilities as well as in industrial systems with precise temperature measurement.
Does the sensor have different variants?
No, the Temp-1W-UNI Pt100 Frost is supplied without options – consisting of the Pt-100 probe and the integrated Converter 2xPt100 1W-UNI.
Can I connect external Pt-100 or Pt-1000 probes to the HWg-STE plus?
No. External Pt100 and Pt1000 probes are connected via the Converter 2xPt100 1W-UNI. This converter cannot be used with Poseidon1 products or with HWg-STE (incl. HWg-STE PoE) and HWg-STE plus web thermometers.
Can I use the converter with only one Pt-1000 or Pt-100 probe?
Yes. The second channel then either displays -999.9 (as an indication of an unconnected probe) or switches off automatically.
Is there a difference between 2-wire and 4-wire connection?
Yes, the 4-wire connection enables the most accurate measurement. The difference is particularly noticeable with longer cables.
Can I connect any Pt-100 or Pt-1000 probes?
Yes. Both original PT100 probes from HW group and other commercially available Pt100 or Pt1000 temperature probes can be used.
Which devices show strange values such as 5000°C – what is the cause?
In this case, the wiring and connection of the Pt-100 or Pt-1000 probe should be checked according to the instructions. In particular, it should be verified whether the jumper connectors on unused terminals are set correctly.
Questions about the Temp-1W-UNI Pt100 Frost?
Our support team in Germany will advise you free of charge on selection, sensor technology and configuration.
HW-Group Temp-1W-UNI Pt100 Frost
General Data
- Temperature sensor with Pt100/Pt1000 technology
- Suitable for industrial temperature monitoring
- Measuring range: -190 to +150 °C
- 8-point calibration
- 2 measured values are provided
Temperature Measurement
- Measuring range: -190 to +150 °C
- Accuracy: ±0.3 °C in the range from -50 to +150 °C
- Accuracy: ±0.6 °C in the range from -190 to -50 °C
- Resolution: 0.10 °C
- Technology: Pt100/Pt1000
Calibration
- Number of calibratable points: 8
- Galvanic isolation: 0
Connection & Power Supply
- Connection: RJ11
- Power supply via RJ11 (from 1-Wire)
- Supply voltage: 5 V
- Power consumption: 20 mA
Cable
- Cable length: 2 m
Environmental Conditions
- Operating temperature: -30 to +85 °C
- Operating humidity: 0–100% RH
- Storage temperature: -30 to +60 °C
- Storage humidity: 5–95% RH
Mechanical Data
- Dimensions: 79 × 68 × 30 mm (W × H × D)
- Weight: 197 g
- Protection rating: IP23
Compatibility
- Perseus Industrial 315
- Perseus Industrial 310
- Perseus Energy 242
- Perseus Energy 285
- Perseus Monitoring 145
- Perseus Monitoring 140
- Perseus Monitoring 155
- Perseus Monitoring 150
- STE2 PLUS SMS-GW
- STE2 PLUS
- STE2 LITE
- Ares 12 LTE
- HWg-Ares 12
- STE2 R2
- Poseidon2 3268
- Poseidon2 3468
- Poseidon2 4002
Areas of Application
- Base stations and BTS infrastructure
- Monitoring of temperature and environmental conditions
- Monitoring in hotels and hostels
- Standalone monitoring
- IoT monitoring
Further Data
- Warranty: 24 months
