WLD-ECHO Water Leak Detector

The standalone water leak detector for two sensor cable zones

The HW group WLD-ECHO is a compact, standalone water leak detector for external WLD sensor cables of type A or B. It monitors two independent sensor cable zones with a total length of up to 185 m per zone and detects even a few drops of conductive liquid at any point along the cable.

Unlike the network-capable WLD devices from HW group (such as WLD2 or NB-WLD), the WLD-ECHO operates completely independently, without any portal or network connection: It warns directly on site via an alarm tone and flashing LED, and additionally switches a potential-free relay output through which the alarm can be integrated into existing security or building management systems.

The WLD-ECHO can be powered either by 2 AA batteries or via an external 12 V DC power supply, allowing flexible installation in data centers, server rooms, and other technical rooms. Detection does not require standing water levels and therefore works very quickly; additionally, the device also reports a break or damage to the sensor cable. The second zone can be deactivated if not needed.

Fast detection, clear signaling

The WLD-ECHO is consistently designed for fast, unambiguous on-site alarming.

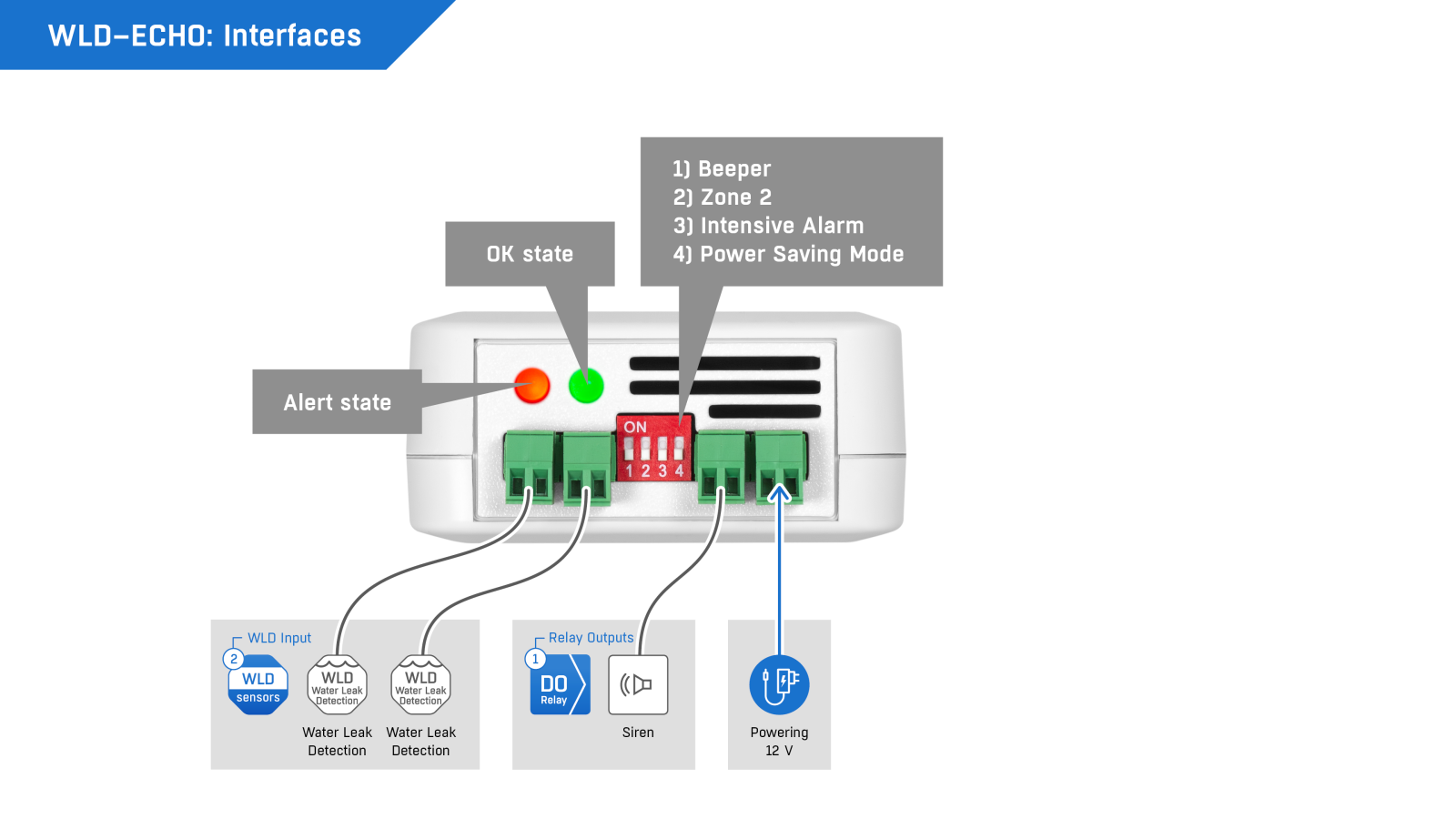

How the WLD-ECHO is constructed

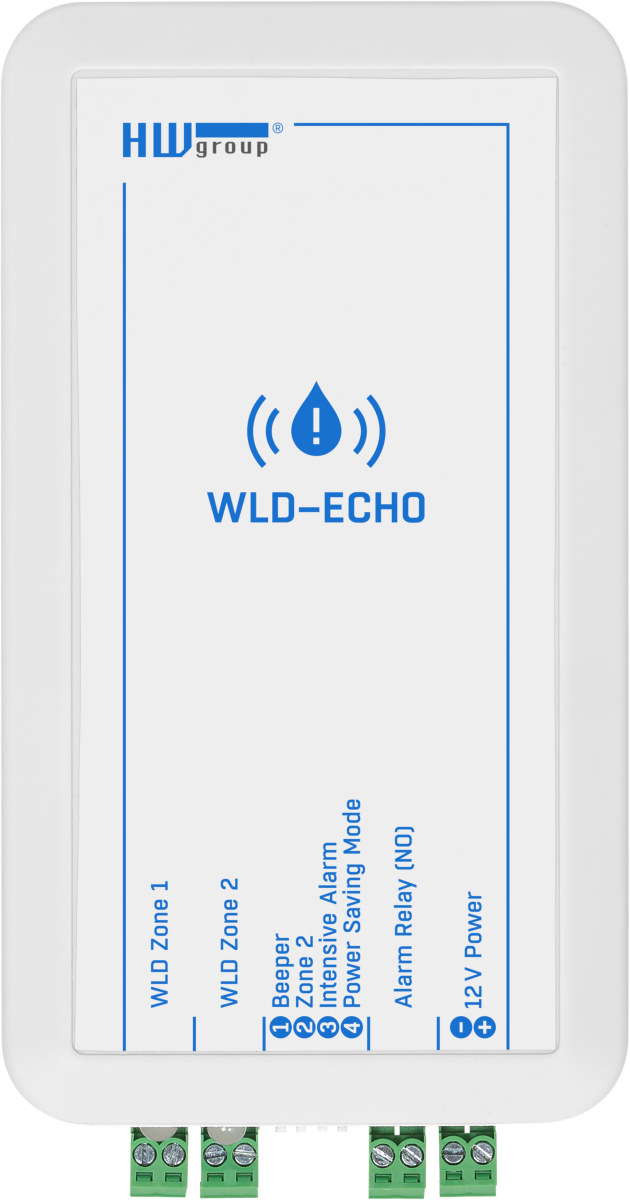

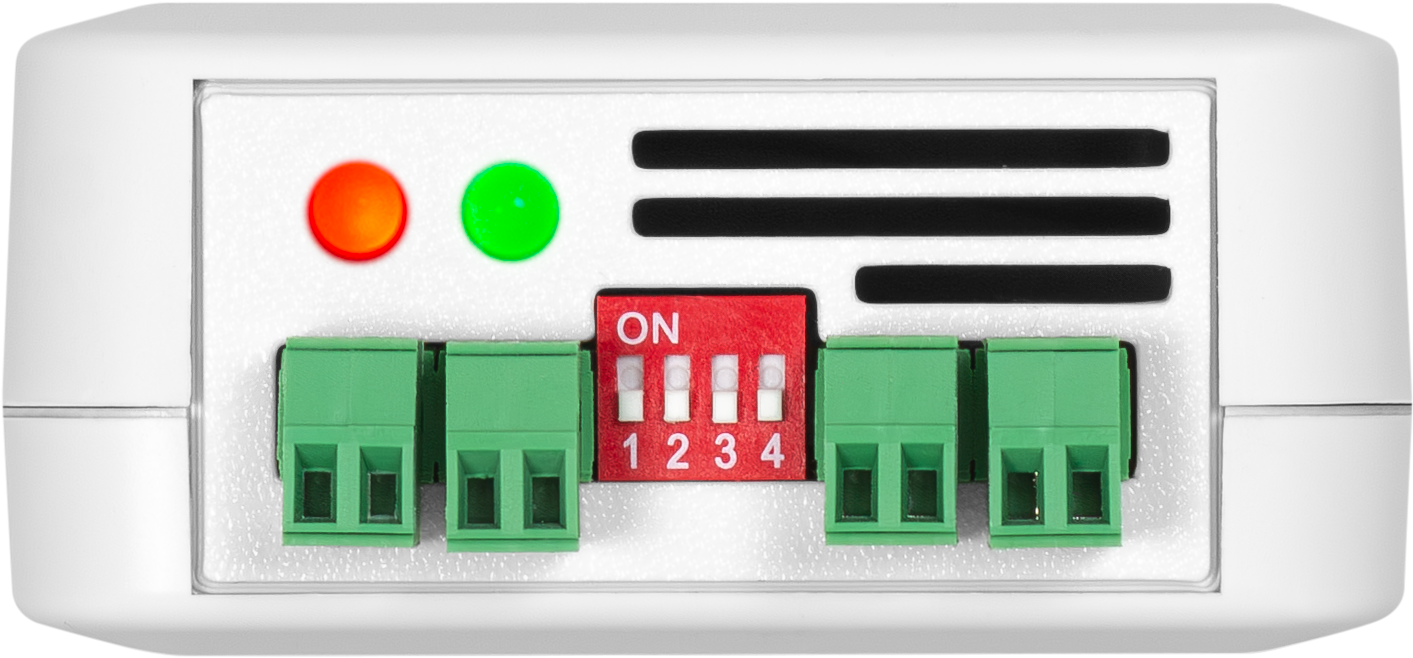

The housing measures 76 × 35 × 144 mm (W×H×D) and consolidates all connections clearly on one side of the housing.

Available as base unit or complete set

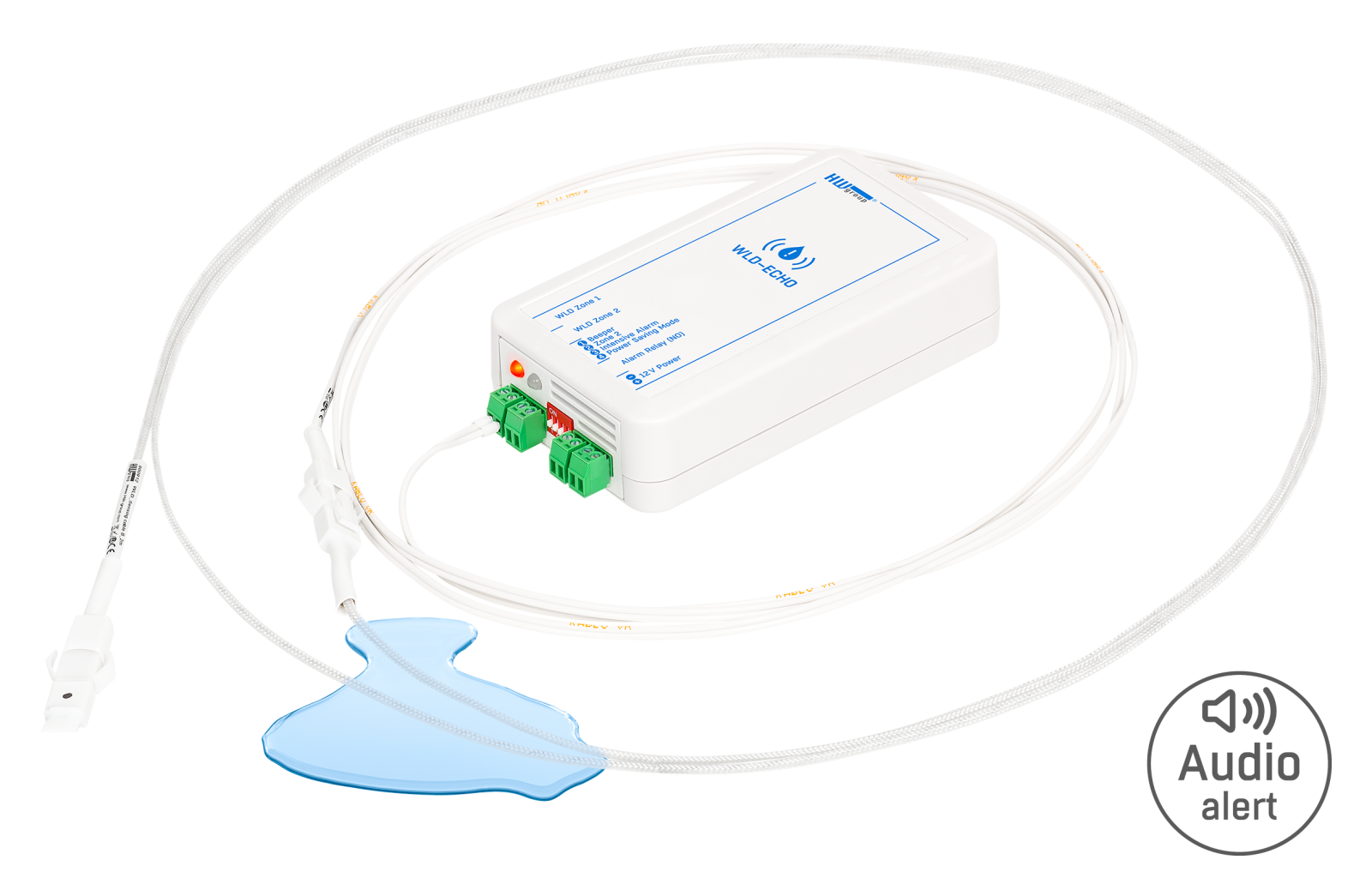

The WLD-ECHO is available either as a pure device or as a complete starter set with sensor cable, batteries, and power supply.

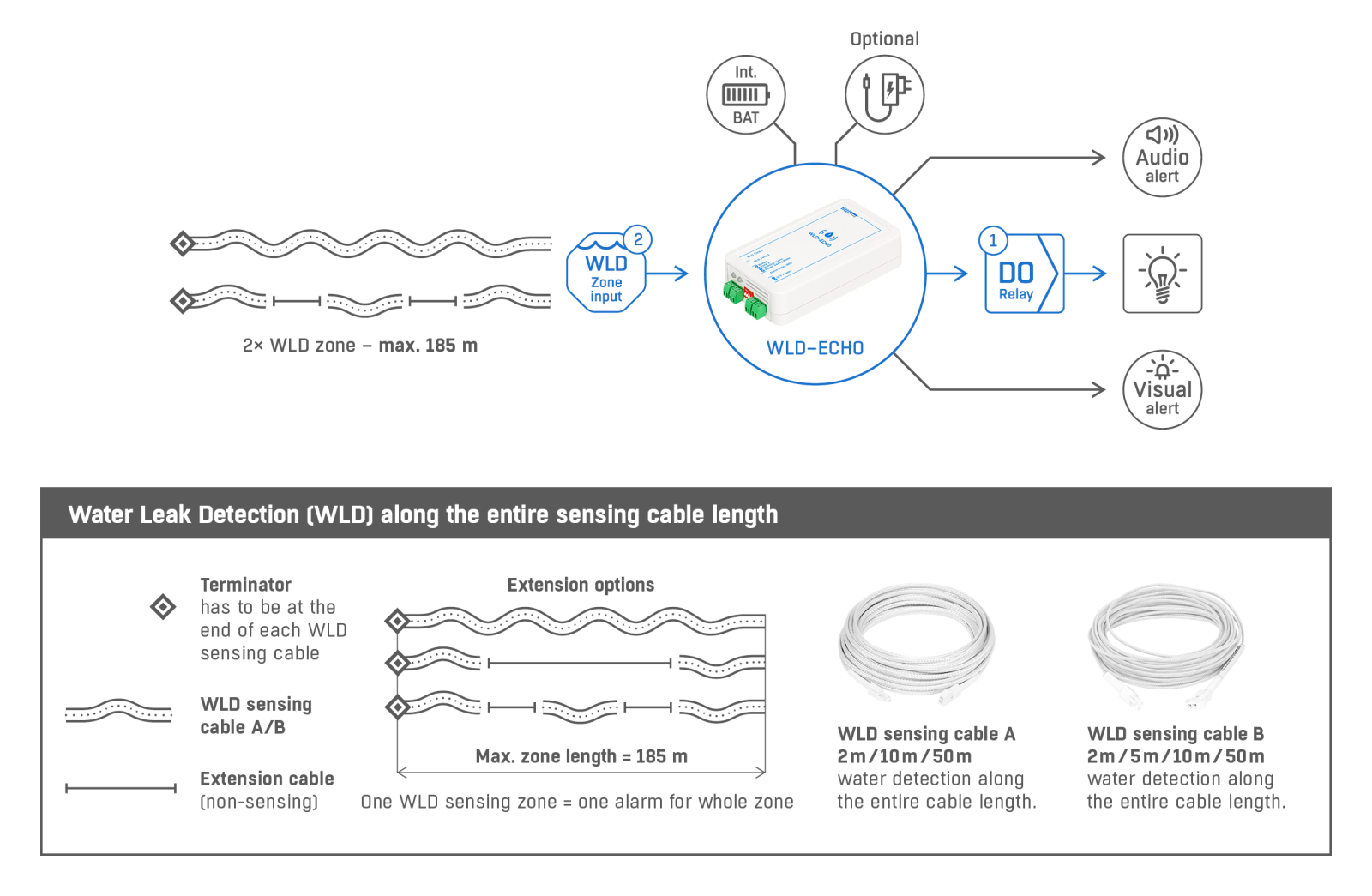

How a WLD zone is set up

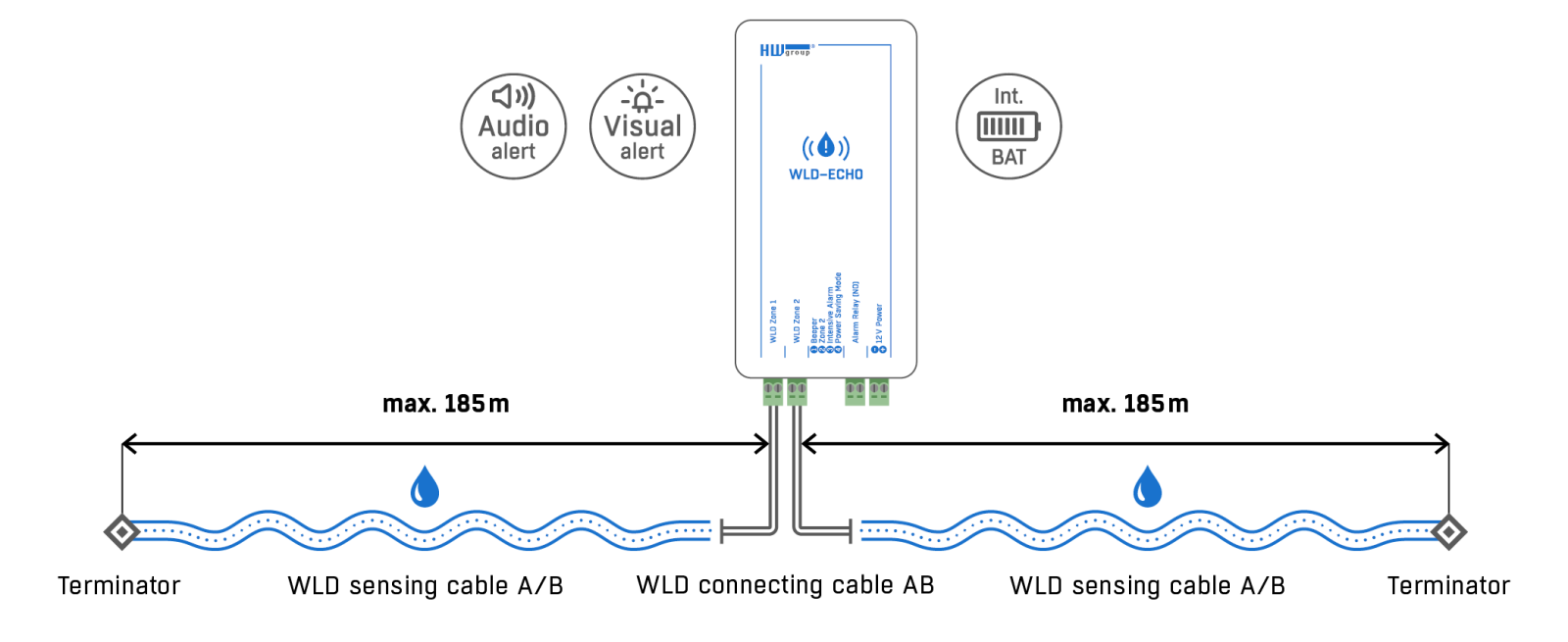

Each of the two zones of the WLD-ECHO monitors a continuous sensor cable that must be terminated at its end.

• A zone detects water along the entire cable length and triggers a common alarm for the whole zone
• The maximum zone length is 185 m, including non-sensing extension cable
• WLD sensor cable type A is available in 2 m, 10 m, or 50 m
• WLD sensor cable type B is available in 2 m, 5 m, 10 m, or 50 m
• A terminator must be placed at the end of each sensor cable for the zone to function correctly
• The WLD-Connecting cable AB and WLD-Extension cable AB are used to connect sensor cable to device or to extend the zone

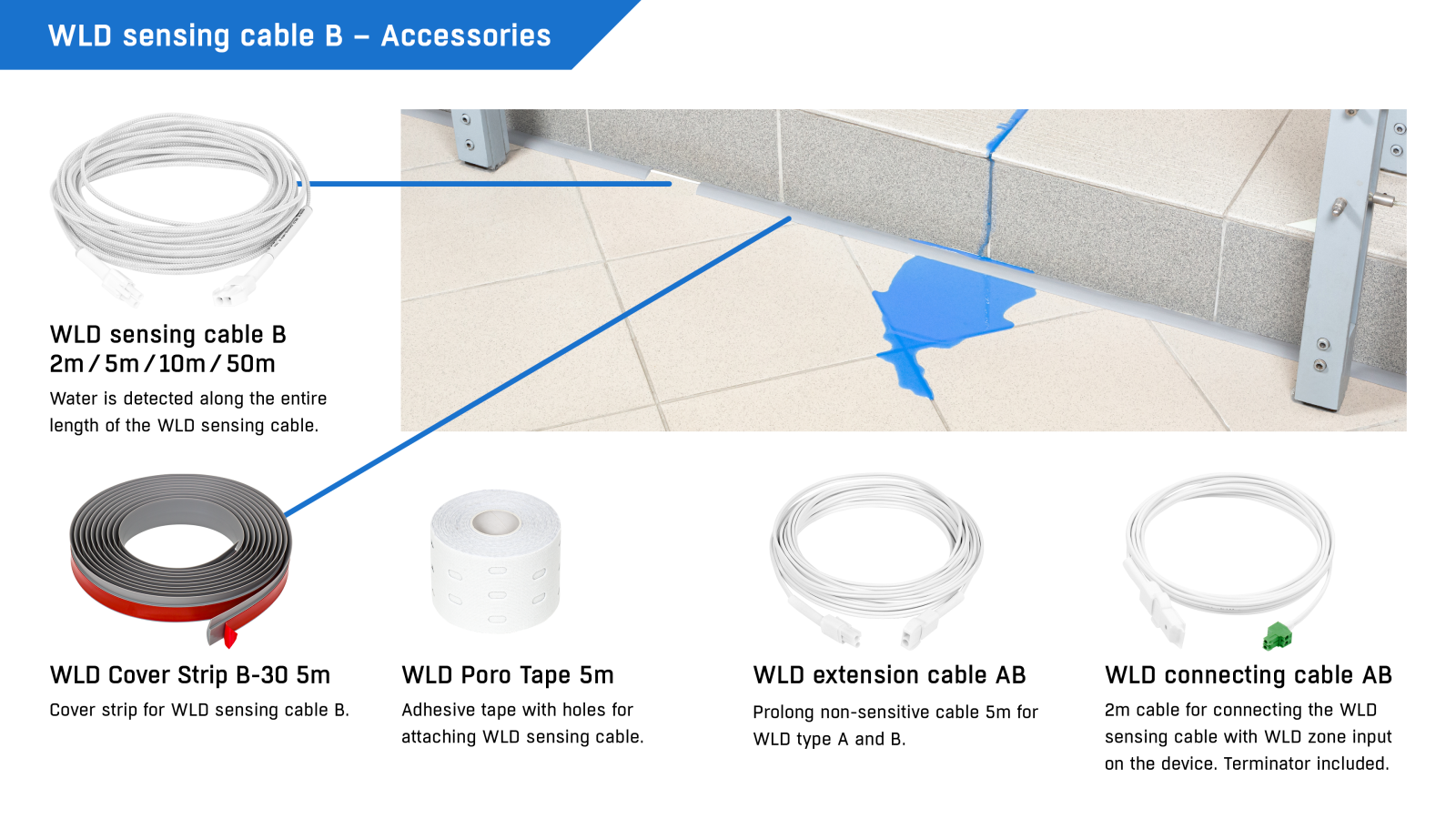

Compatible sensor cables and accessories at a glance

The following components of the WLD system from HW group can be combined with the WLD-ECHO.

Why the WLD-ECHO is suitable

• Early warning – even the first drops of liquid are detected
• No false alarms from standing moisture, as no water level is required
• Simple installation without network or portal connection

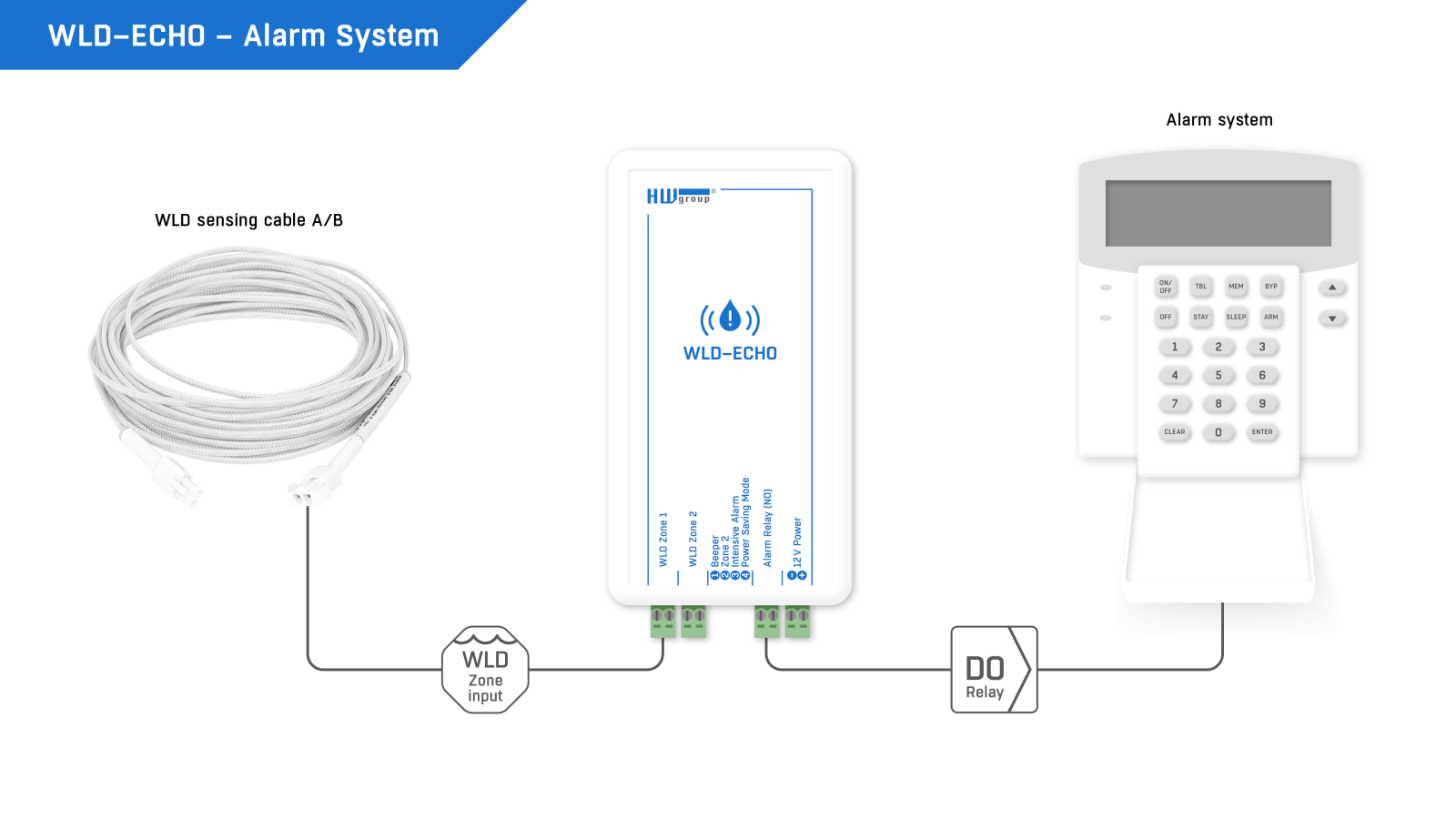

• Easy connection to any system with dry contact input, such as an alarm control panel
• Sensor cables cover larger areas and respond significantly faster than point water sensors

Installation in a few steps

1. Select the desired set (base unit or complete package) when ordering
2. Place the device at the desired location on a table or mount it on the wall
3. Connect the sensor cable to the desired zone(s) via the connection cable and terminate with the terminator
4. Deactivate the unused second zone via the DIP switch if necessary
5. Insert batteries or connect external 12 V supply
6. Connect the relay output to an alarm system or other monitoring system if required

Designed for continuous operation in technical rooms

• IP23 rating
• Operating temperature -10 °C to 60 °C
• Storage temperature -30 °C to 60 °C
• CE declaration of conformity available
• 24 months manufacturer warranty

Application areas

• Liquid detection in buildings and technical rooms
• Installation along walls and steps to protect individual rooms or entire floors
• Monitoring water leakage outside bathrooms in hotels
• Data centers – leak detection under raised floors and above suspended ceilings
• Server rooms/IT racks – early warning of leaks at cooling units and cable ducts
• HVAC systems – monitoring of air conditioning units, chillers, and condensate lines
• Boiler rooms – detection of leaks at boilers, pumps, and valves
• Building basements – early detection of flooding or ingress of groundwater
• Industrial plants – monitoring around pipelines, tanks, and production lines
• Commercial buildings – installation along walls and floors to protect offices and common areas
• Hotels – monitoring of bathrooms, corridors, and technical areas
• Hospitals and laboratories – protection of sensitive areas with critical equipment

The HW group WLD-ECHO combines fast, drop-by-drop water detection along two sensor cable zones with a standalone acoustic and visual alarm and a potential-free relay output – a straightforward solution wherever immediate, local warning of water leaks is needed, even without a network or portal.
