Nano Sensorics AmpSense
€189.00
The wireless LoRaWAN current sensor for three-phase current measurement
The Nano Sensorics AmpSense is an advanced sensor for measuring electrical current via easy-to-install, non-invasive split-core current transformers. It is designed for indoor use and measures three-phase alternating current simultaneously via three current transformer clamps. An integrated advanced intelligent (AI) calculation algorithm ensures reliable current detection with an accuracy of less than ±1 %. Calibration is not required for the AmpSense.
Data transmission is performed via a Class A LoRaWAN® radio network. The sensor is powered by 3.6 V lithium batteries and achieves a battery life of up to 13 years depending on the configuration. Configuration is done "over the air" via downlink, making the AmpSense easy to commission and integrate into existing LoRaWAN networks.
Precise three-phase current measurement
The AmpSense continuously records the current of all three phases simultaneously.
Three-phase current measurement
Simultaneous detection of three phases via one dedicated current transformer each.
High measurement accuracy
Current measurement accuracy of less than ±1 %.
Split-core current transformers
Non-invasive installation without interrupting the lines, simply clamped around the cables.
AI calculation algorithm
Integrated intelligent algorithm for reliable measured values, no calibration required.
Battery life of up to 13 years
Battery-powered operation without wiring, runtime depending on settings and environmental conditions.
Individually selectable: current measuring range
The AmpSense is available for different maximum current levels, each in a three-phase version.
Please note: The desired current measuring range must be specified before ordering, as the matching split-core current transformers are permanently matched to the respective model variant.
AmpSense 32
Measures the RMS current up to 32 A, three-phase.
AmpSense 50
Measures the RMS current up to 50 A, three-phase.
AmpSense 75
Measures the RMS current up to 75 A, three-phase.
AmpSense 150
Measures the RMS current up to 150 A, three-phase.
AmpSense 250
Measures the RMS current up to 250 A, three-phase.
AmpSense 400
Measures the RMS current up to 400 A, three-phase.
How the AmpSense is designed

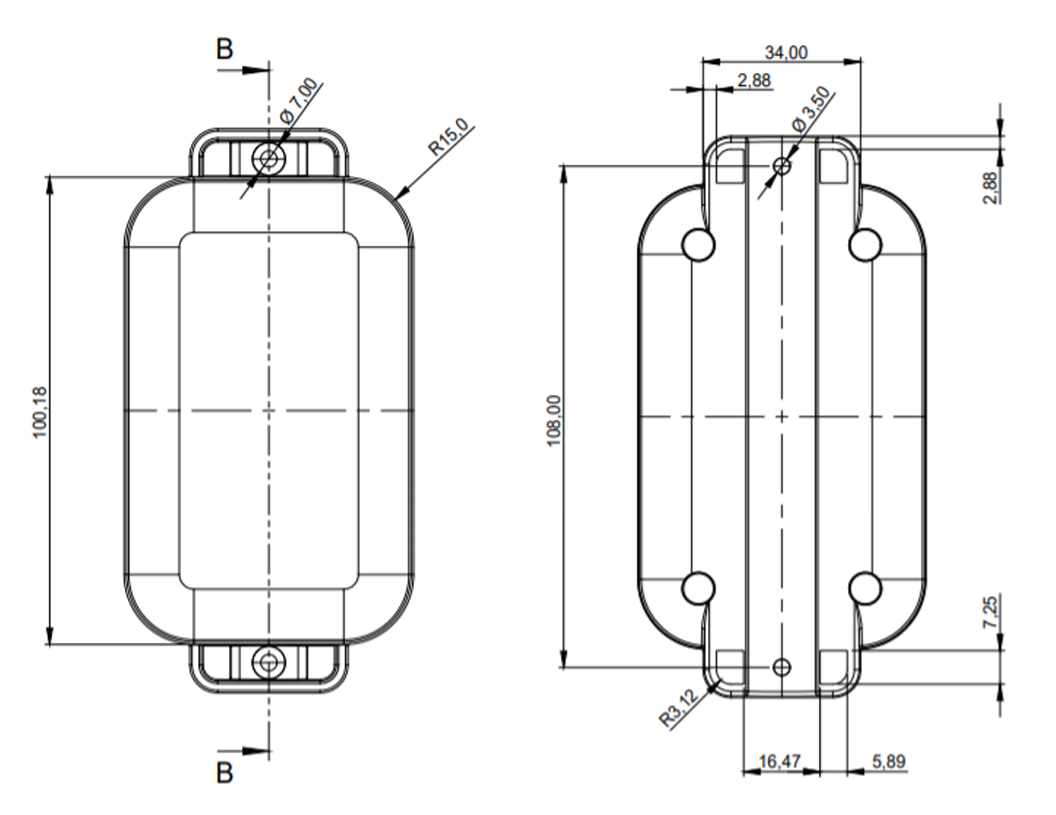

The housing of the AmpSense is compact at 121 x 62 x 26 mm and weighs 80 g without battery and without current transformers.
Housing
Robust plastic housing made of ASA+PC-FR with a protection class of up to IP65, intended for wall mounting indoors. An LED on the front of the housing indicates the connection status.
Three split-core current transformers
Three hinged current transformers are connected to the housing via cables – one per phase. Each transformer is clamped around the respective conductor without interrupting the line.
Rear side with battery compartment
The rear cover is opened with a screwdriver. Behind it is the battery compartment for two AA lithium batteries (3.6 V, type ER14505).
Wall mounting
After closing the rear cover, the housing is fastened to the wall with two suitable screws.
Labeling
On the rear of the sensor there is a label with the sensor name, serial number, production date and QR code.
Reliable radio connection over long distances
The AmpSense uses LoRaWAN® for energy-efficient and long-range data transmission.
LoRaWAN® 1.0.3
Class A end device with support for OTAA, ABP, ADR and Adaptive Channel Setup.
End-to-end encryption
Securing of the radio transmission via LoRaWAN® AES encryption.
Frequency band EU863–870 (standard)
Also optionally available for US902–928, AU915–928, EU433, RU864 or IN865.
Range of up to 10 km
Transmission range with line of sight; the actual range depends on the environment.
Adjust settings via downlink
After installation, the AmpSense can be conveniently configured remotely without having to open the device again.
- Measuring interval (Tx period) adjustable via downlink on port 3
- Green status LED can be switched on, off or briefly toggled via downlink
- Device reset can be triggered via downlink command
- Multiple settings can be combined in a single downlink message
- Optional configuration additionally possible via NFC directly on the device
Easy commissioning, low-maintenance in operation
After inserting the batteries, the AmpSense automatically connects to the LoRaWAN network.
- Open the rear cover with a screwdriver
- Insert two AA lithium batteries (3.6 V)
- Close the rear cover again
- Mount the housing on the wall with two suitable screws
- Clamp the three split-core current transformers around the respective phase conductors without interrupting the lines
- Wait for the connection to be established: The LED flashes for 15 seconds and lights up continuously for 3 seconds if the connection is successful before going out
If the connection is not successful immediately, the sensor automatically makes further connection attempts after 10 seconds, 60 seconds, 10 minutes, 1 hour and finally every 24 hours. The button on the device can be used to restart the sensor and trigger an immediate new connection attempt. Apart from occasional battery replacement, the AmpSense is maintenance-free and is factory-calibrated; further calibration is not required. The sensor is intended exclusively for indoor use and should not be mounted near ventilation slots, windows or door openings with constant drafts.
Important safety instructions
- Suitable for indoor use only
- Do not open, crush or puncture the housing or battery
- Remove batteries when not in use to prevent leakage
- Keep the device and battery dry and away from liquids
- Use only equivalent battery types recommended by the manufacturer
- Do not bend, deform, paint or place the sensor in a microwave
- Do not clean with solvents or alcohol, only with a slightly damp cloth
- Not suitable for metrological or commercial billing purposes
Environmentally friendly disposal
The AmpSense falls under the Waste Electrical and Electronic Equipment Directive (WEEE Directive 2012/19/EU). The device and its components must be disposed of separately from household and industrial waste at a local collection point. The battery must be disposed of separately.
Areas of application
According to the manufacturer, the AmpSense is suitable for current measurement in commercial, industrial and public buildings and can be connected to energy management or building management systems (BMS) as well as SCADA systems.
- Smart Buildings
- Government buildings
- Public buildings
- Industrial facilities
- Factories
- Warehouses
By monitoring the three-phase current, according to the manufacturer, electrical consumers such as lighting (indoor and street lighting), air conditioning (HVAC) or elevators can be monitored for anomalies: Changes in current consumption can indicate faults or maintenance requirements at an early stage. The data obtained also support the analysis of system efficiency, help to reduce energy consumption and contribute to reducing the CO₂ footprint of connected buildings.
The Nano Sensorics AmpSense combines precise three-phase current measurement, non-invasive split-core installation and battery-powered wireless LoRaWAN connectivity in a compact, low-maintenance sensor.
Frequently asked questions
What is the Nano Sensorics AmpSense and what is it used for?
The AmpSense is a battery-powered, wireless LoRaWAN sensor for three-phase measurement of electrical current via three split-core current transformers. It is suitable for current and load monitoring in commercial, industrial and public buildings.
In which current measuring ranges is the AmpSense available?
The AmpSense is available in three-phase versions for measuring ranges up to 32 A, 50 A, 75 A, 150 A, 250 A or 400 A RMS current. The desired measuring range must be specified before ordering.
Do the power lines need to be interrupted for installation?
No. The current transformers are designed as split-core versions and are simply clamped around the respective phase conductors without interrupting the lines.
How long does the battery last?
According to the manufacturer, the battery life is up to 13 years, depending on the selected settings and environmental conditions. The sensor is powered by two 3.6 V AA lithium batteries (type ER14505).
Does the AmpSense need to be calibrated?
No. The sensor is factory-calibrated; further calibration by the user is not required according to the manufacturer.
Can the AmpSense be installed outdoors?
No. The AmpSense is intended exclusively for indoor use and should not be mounted near ventilation slots, windows or door openings with constant drafts.
Can the AmpSense be integrated into an energy management or building management system?
Yes, according to the manufacturer, the measured data from the AmpSense can be transmitted to energy management or building management systems (BMS) as well as SCADA systems.
Questions about the AmpSense?
Our support team in Germany will advise you free of charge on selection, installation and configuration.
Nano Sensorics AmpSense
General Data
- Modern sensor for measuring electrical current via easy-to-install clamp-on current transformers
- Designed for indoor use
- Three-phase version
- Integrated intelligent AI calculation algorithm for reliable current measurement
- LoRaWAN® communication
- LoRaWAN® Class A end device
- Easy to configure and connect to the LoRaWAN® network
- No calibration required
- Robust housing
- Over-the-Air configuration
- Split-core current transformers for easy installation
Current Measurement
- Measuring ranges:
- 1 A ~ 32 A
- 1 A ~ 50 A
- 1 A ~ 75 A
- 1 A ~ 150 A
- 1 A ~ 250 A
- 1 A ~ 400 A
- Measurement accuracy: < ±1 %
- Number of phases: 3-phase, according to customer selection
- Measurement via split-core current transformers
Sensor & Data Recording
- Integrated indoor current sensor
- Configurable sampling interval
- Configurable data transmission interval
- Configuration via downlink
- NFC configuration optional
- Automatic self-calibration
Power Supply
- Battery operation with 2 × 3.6 V AA lithium batteries
- Battery type: ER14505 AA Lithium
- Battery capacity: 2400 mAh per cell
- Expected battery life: <13 years, depending on configuration and environmental conditions
LoRaWAN® & Radio
- Radio technology: LoRaWAN® 1.0.3
- Device type: Class A end-device
- LoRaWAN® end-to-end encryption: AES
- Supported features: OTAA, ABP, ADR, Adaptive Channel Setup
- Standard radio region: EU863-870
- Optionally supported regions: US902-928, EU863-870, AU915-928, EU433, RU864, IN865
- Link budget: 137 dB (SF7) to 151 dB (SF12)
- Transmit power: 14 dBm ±1 dBm, region-dependent
- Receive sensitivity: up to -132 dBm with LoRa, Spreading Factor 12 and 293 bit/s
- Receive sensitivity: up to -118 dBm with FSK, 5 kHz frequency deviation and 1.2 kbit/s
- Communication range: up to 10 km with line of sight
- Actual transmission range depends on environmental conditions
Data Transmission
- Current Phase I: 2 bytes
- MSB: Current value in A
- LSB: one decimal place
- Current Phase II: 2 bytes
- MSB: Current value in A
- LSB: one decimal place
- Current Phase III: 2 bytes
- MSB: Current value in A
- LSB: one decimal place
- Battery voltage: 2 bytes
- First byte: integer voltage value in volts
- Second byte: two decimal places of the voltage
Mechanical Data
- Dimensions: 121 × 62 × 26 mm
- Weight without battery: 80 g
- Housing material: ASA+PC-FR plastic
Environmental Conditions
- Storage temperature: -10 °C ~ +70 °C
Areas of Application
- Smart Buildings
- Government buildings
- Public buildings
- Industrial facilities
- Factories
- Warehouses
