Nano Sensorics Ultra TEMPHU Outdoor
€273.00
The Robust LoRaWAN Sensor for Temperature Measurement in Outdoor and Industrial Applications
The Nano Sensorics ULTRA TempHu is a heavy-duty outdoor sensor for the complete acquisition of temperature values via 4 external temperature probes. The ULTRA TempHu is housed in a room sensor enclosure, designed for wall mounting, and powered by 2 “D-cell” lithium batteries. The integrated advanced intelligent (AI) calculation algorithm ensures reliable temperature measurements and continuous automatic or manual calibration via downlink message. Data transmission is performed via a Class A LoRaWAN® radio network.
With four independent temperature probes, multiple measuring points can be monitored simultaneously from a single device – ideal for predictive maintenance, process optimization, and the protection of critical assets. The super robust enclosure is rated IP67/IP68 and is therefore designed for permanent use in harsh outdoor and industrial environments.
Four Independent Temperature Probes on One Device
The ULTRA TempHu simultaneously records up to four temperature measuring points with high accuracy.
4x Temperature Probes
Four independent external temperature probes with 1–2 m cable length, depending on the probe variant.
Measuring Range -40 to 180 °C
Accuracy of max. ±1 °C or ±0.4 °C depending on the temperature range.
IP67 / IP68
Super robust enclosure for permanent use in outdoor and industrial environments.
AI Calculation Algorithm
Integrated intelligent algorithm with automatic or manual calibration via downlink.
Up to 15 Years Battery Life
Operation via 2 D-cell lithium batteries, runtime depending on settings and environment.
Individually Selectable: Cable Length of the Temperature Probes
The external temperature probes of the ULTRA TempHu are available with different cable lengths depending on the sensing option.
Please note: The desired cable length must be specified before ordering, as the temperature probes are supplied with permanently attached cables.
Cable Length 1 Meter
Temperature probe with 1 m long, permanently attached cable.
Cable Length 2 Meters
Temperature probe with 2 m long, permanently attached cable for more distant measuring points.
How the ULTRA TempHu Is Constructed

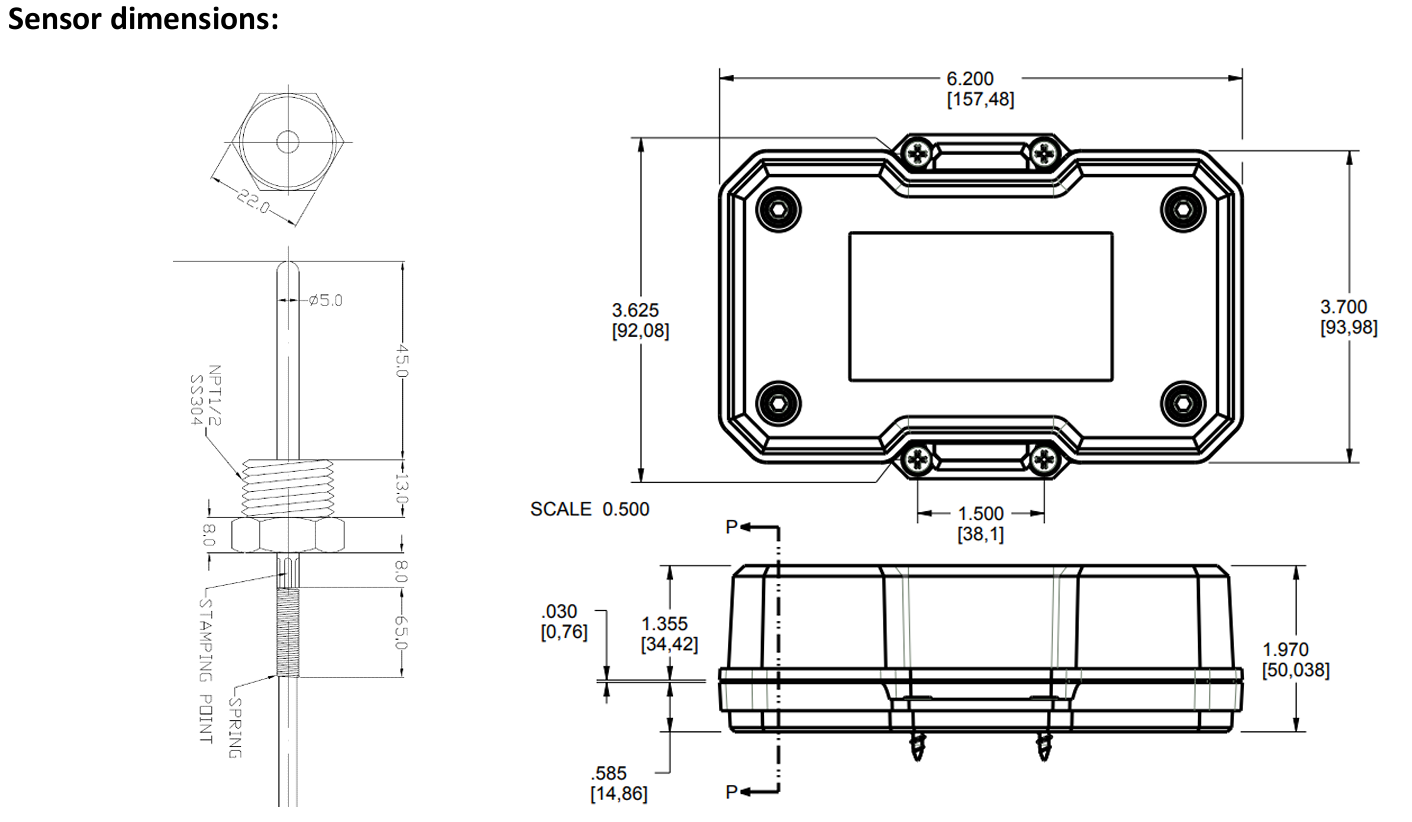

The enclosure measures approximately 157 x 94 x 50 mm (6.2" x 3.7" x 1.97"), is significantly more robust and larger than that of the standard TempHu sensors, and weighs 200 g without batteries.
Enclosure
Super robust plastic enclosure made of ASA+PC-FF with IP67/IP68 protection rating, designed for permanent mounting in industrial and outdoor environments. Integrated mounting holes on the rear ensure durable wall mounting.
Four Cable Glands with Temperature Probes
Four cable glands emerge from the underside of the enclosure, each with an external temperature probe connected via a 1–2 m long cable. The probes are mounted directly on or in the object to be monitored.
Battery Compartment
Inside the enclosure is the battery compartment for 2 lithium D-cells that supply power to the sensor.
Button and LED Indicator
A button is used to reset the device and to immediately attempt reconnection to the LoRaWAN network. A green LED indicates the connection status and can additionally be switched on, off, or toggled for 5 seconds via downlink command.
Labeling
On the rear of the sensor there is a label with sensor name, serial number, production date, and QR code.
Reliable Radio Connectivity over Long Distances
The ULTRA TempHu uses LoRaWAN® for energy-efficient and long-range data transmission.
LoRaWAN® 1.0.3
Class A end device with support for OTAA, ABP, ADR, and Adaptive Channel Setup.
End-to-End Encryption
Securing of the radio transmission via LoRaWAN® AES encryption.
Frequency Band US902–928 (Standard)
Optionally also available for EU863–870, AU915–928, EU433, RU864, or IN865.
Range up to 10 km
Transmission range under line-of-sight conditions, link budget from 137 dB (SF7) to 151 dB (SF12).
Adjust Settings via Downlink
After installation, the ULTRA TempHu can be conveniently configured remotely without having to open the device again.
- Measurement interval (Tx period) adjustable via downlink on port 3
- Green status LED can be switched on, off, or briefly toggled via downlink
- Device reset can be triggered via downlink command
- Multiple settings can be combined in a single downlink message
- Optional configuration additionally possible via NFC directly on the device
Probe and Enclosure Mounting in Industrial Environments
The installation manual describes both the mounting of the temperature probes and the enclosure in detail.
Probe Mounting
Each temperature probe is mounted directly on or in the object to be monitored, e.g. on pipes, motors, bearings, pumps, heat exchangers, busbars, transformers, electrical connections, metal structures, or industrial machines. For good measurement accuracy, good thermal contact should be ensured, the probe firmly fixed, air gaps avoided, and unwanted heat sources nearby bypassed.
Surface Mounting
For surface measurements, the manufacturer recommends cleaning the mounting surface, using a thermal conductive material if necessary, securing the probe with suitable clamps, brackets, or metal fasteners, and insulating it if required to minimize the influence of ambient air.
Cable Protection
Probe cables should be routed without strong tensile forces or sharp bends, protected against abrasion, secured with cable ties or retaining clips, and kept away from moving machine parts. If necessary, a protective conduit or flexible cable protection is recommended.
Enclosure Mounting
The enclosure is mounted on a stable wall, on industrial equipment, in control cabinets (if permitted), or on load-bearing elements near the monitored system. Locations with continuous mechanical impact, strong vibration, standing water, open flame, or temperatures outside the permissible range should be avoided.
Fastening
Stainless steel screws or metal bolts (diameter 4–5 mm, length 30–40 mm) with stainless steel washers are recommended, as well as dowels when mounting on concrete or masonry. After mounting, the firm seating of the enclosure should be checked.
Cable Routing & Environmental Conditions
Cables should be routed as short as possible, away from high-voltage lines, and mechanically protected, e.g. via cable ducts. Water accumulation at the cable entries should be avoided; cable glands must remain tightly tightened to maintain the enclosure protection.
Installation Check
After installation, it should be verified that all probes are firmly seated, the cable routing is mechanically unloaded, the enclosure is firmly mounted, LoRaWAN® communication is working, and all four measuring channels deliver valid values; if necessary, the measured values can be compared with a reference thermometer.
Manufacturer’s note: Installation must be carried out by qualified personnel in compliance with the applicable electrical and industrial safety regulations. The enclosure and temperature probes must not be modified, and the permissible operating temperature range must not be exceeded. The installation should be regularly checked for cable damage, loose fastenings, or environmental influences; damaged cables or probes must be replaced promptly.
Factory-Calibrated and Low-Maintenance
The ULTRA TempHu is factory-calibrated and requires no further maintenance in normal operation.
Thanks to the integrated intelligent calculation algorithms (AI) and the Automatic Baseline Correction (ABC) technology from Nano Sensorics, the sensor is maintenance-free in normal environments. After installation, a reset can be triggered via the button; the sensor then automatically attempts to connect to the LoRaWAN network within 15 seconds. If the first connection is unsuccessful, further automatic attempts follow after 10 seconds, 60 seconds, 10 minutes, 1 hour, and finally every 24 hours until the connection is successfully established. Apart from occasional battery replacement, the ULTRA TempHu is maintenance-free.
Important Safety Instructions
- Suitable for indoor and outdoor use
- Do not open, crush, or puncture the enclosure or battery
- Remove batteries when not in use to prevent leakage
- Keep the device and battery dry and away from liquids
- Use only manufacturer-recommended equivalent battery types
- Do not bend, deform, paint, or place the sensor in a microwave
- Do not clean with solvents or alcohol; use only a slightly damp cloth
- Not suitable for metrological or commercial billing purposes
According to the manufacturer’s declaration of conformity, the device meets the requirements of the EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU, and the RED Directive 2014/53/EU, and carries the CE and RoHS markings.
Environmentally Sound Disposal
The ULTRA TempHu falls under the Waste Electrical and Electronic Equipment Directive (WEEE Directive 2012/19/EU). The device and its components must be disposed of separately from household and industrial waste at a local collection point. The battery must be disposed of separately.
Areas of Application
According to the manufacturer, the ULTRA TempHu is suitable for a wide range of industrial and commercial monitoring tasks.
- HVAC and heat pump monitoring (flow/return temperature, compressors, heat exchangers)
- Monitoring of industrial equipment (machines, pumps, motors, bearings)
- Industrial process temperature monitoring (tanks, pipelines, reactors)
- Cold chain and storage monitoring (cold stores, food and pharmaceutical storage)
- Building and infrastructure monitoring (technical rooms, public infrastructure, outdoor facilities)
- Smart Industry & IIoT (Industry 4.0, predictive maintenance, cloud connectivity)
- Monitoring of electrical installations (control cabinets, transformers, busbars, cable connections)
- Renewable energy systems and heat transfer stations
The Nano Sensorics ULTRA TempHu combines four independent temperature probes, a robust IP67/IP68 enclosure, and battery-powered wireless LoRaWAN connectivity in a single device – suitable for reliable multi-point temperature monitoring in demanding outdoor and industrial environments.
Frequently Asked Questions
What is the Nano Sensorics ULTRA TempHu and what is it used for?
The ULTRA TempHu is a heavy-duty outdoor LoRaWAN sensor with four external temperature probes. It is suitable for multi-point temperature monitoring in industrial, commercial, and critical infrastructure applications, e.g. on machines, pipelines, electrical installations, or in cold chains.
How does the ULTRA TempHu differ from the standard TempHu?
The ULTRA TempHu features four external temperature probes instead of an internal sensor, a significantly larger measuring range from -40 °C to 180 °C, an IP67/IP68-rated enclosure for outdoor use, and 2 D-cell lithium batteries instead of AA batteries.
How long does the battery last?
According to the manufacturer, the battery life is up to 15 years, depending on the selected settings and environmental conditions. The sensor is powered by 2 D-cell lithium batteries.
Can the ULTRA TempHu be installed outdoors?
Yes. Unlike the standard TempHu, the ULTRA TempHu is, according to the manufacturer, suitable for both indoor and outdoor use and features a super robust enclosure rated IP67/IP68.
Which LoRaWAN frequency band is supported by default?
By default, the ULTRA TempHu supports the frequency band US902–928. Optionally, the device is also available for the regions EU863–870, AU915–928, EU433, RU864, or IN865.
How long is the warranty valid?
The manufacturer grants a warranty of 12 months from the date of manufacture, provided that transport, installation, storage, and operating conditions are observed and there is no manipulation or external damage. An extension of the warranty is possible for an additional charge.
Is the ULTRA TempHu maintenance-intensive?
No, the sensor is factory-calibrated and, according to the manufacturer, maintenance-free thanks to integrated AI algorithms and Automatic Baseline Correction technology, apart from occasional battery replacement.
Questions about the ULTRA TempHu?
Our support team in Germany provides free advice on selection, installation, and configuration.
Nano Sensorics ULTRA TempHu
General Data
- Heavy-duty outdoor temperature sensor for demanding applications
- Temperature measurement via 4 separate temperature probes
- Designed for wall mounting in a robust sensor enclosure
- Fully wireless operation
- Integrated intelligent AI calculation algorithm for reliable temperature measurement
- Automatic self-calibration as well as manual calibration via downlink messages
- LoRaWAN® communication according to LoRaWAN® 1.0.3
- LoRaWAN® Class A end device
- Robust heavy-duty enclosure
Temperature Measurement
- Measuring range: -40 °C ~ +180 °C
- Accuracy:
- max. ±1 °C at -40 °C ~ -10 °C
- max. ±0.4 °C at -10 °C ~ +180 °C
- 4 × external temperature probes
- Individual temperature probes possible
- Probe cable length: 1 ~ 2 m, depending on the selected temperature measurement option
Sensor & Data Recording
- Configurable sampling interval
- Configurable data transmission interval
- Configuration via downlink
- NFC configuration optional
- Automatic self-calibration
- Over-the-Air configuration
Power Supply
- Battery operation with 2 × D-cell lithium batteries
- Battery type: D Cell Lithium
- Expected battery life: <15 years, depending on configuration and environmental conditions
LoRaWAN® & Radio
- Radio technology: LoRaWAN® 1.0.3
- Device type: Class A end-device
- LoRaWAN® end-to-end encryption: AES
- Supported activation: OTAA, ABP
- Adaptive data rate: ADR
- Adaptive Channel Setup
- Standard radio region: US902-928
- Optionally supported regions: EU863-870, AU915-928, EU433, RU864, IN865
- Link budget: 137 dB (SF7) to 151 dB (SF12)
- Transmit power: 14 dBm ±1 dBm, region-dependent
- Communication range: up to 10 km under line-of-sight conditions
- Actual transmission range depending on environmental conditions
Receiver Sensitivity
- LoRa: up to -132 dBm at Spreading Factor 12 and 293 bit/s
- FSK: up to -118 dBm at 5 kHz frequency deviation and 1.2 kbit/s
Data Transmission
- Temperature probe 1: 2 bytes
- MSB: temperature value from -128 to +128 °C
- LSB: value of the decimal place
- Temperature probe 2: 2 bytes
- MSB: temperature value from -128 to +128 °C
- LSB: value of the decimal place
- Temperature probe 3: 2 bytes
- MSB: temperature value from -128 to +128 °C
- LSB: value of the decimal place
- Temperature probe 4: 2 bytes
- MSB: temperature value from -128 to +128 °C
- LSB: value of the decimal place
- Battery voltage: 2 bytes
- First byte: integer voltage value in volts
- Second byte: two decimal places of the voltage
Mechanical Data
- Weight without batteries: 200 g
- Enclosure material: ASA+PC-FF plastic
- Enclosure design: particularly robust heavy-duty enclosure
- Mounting: wall mounting
Protection Rating
- Protection class: IP67 / IP68
- Suitable for demanding outdoor applications
Environmental Conditions
- Storage temperature: -40 °C ~ +85 °C
- Designed for heavy-duty temperature measurements in outdoor environments
Areas of Application
- Heavy-duty temperature measurement outdoors
- Mission-critical applications
- Industrial factories and production facilities
- Heat pumps
- Applications with individual temperature probes
