COMET TL-POE10R – Reliable PoE Splitter (IEEE 802.3af)

COMET TL-POE10R PoE Splitter 5V/9V/12V

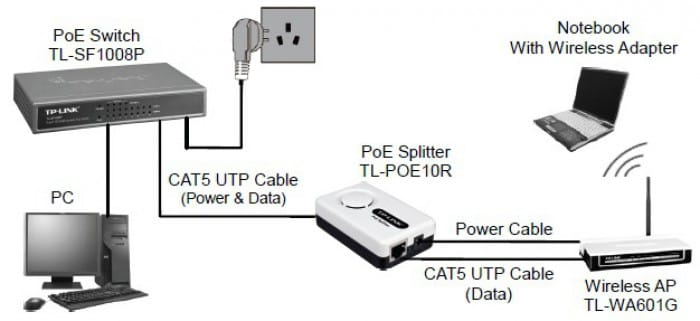

The COMET TL-POE10R is a compact and reliable PoE splitter from TP-Link, specifically designed to power COMET Ethernet transmitters and multiloggers over PoE networks. It separates data and power from an IEEE 802.3af-compatible PoE port (switch or injector) and supplies the required voltage via a dedicated coaxial connector – switchable between 5 V, 9 V, and 12 V.

Using just one network cable (up to 100 m), you can supply both data and power to your COMET devices – no separate power supply required on site. Simply connect the PoE output from the switch, set the splitter to the correct voltage using the DIP switch (12 V for Txxxx series, 5 V for multiloggers), and connect the device with the coaxial cable – done!

The TL-POE10R is robust, compact, and designed for continuous use in industrial environments, building automation, server rooms, warehouses, or outdoor installations. It supports up to 15.4 W of PoE power and operates within a temperature range of 0 to +40 °C. Perfect for installations where power cables are difficult or impossible to install.

Why the COMET TL-POE10R is the ideal PoE splitter:

• IEEE 802.3af standard – compatible with all PoE switches and injectors
• Switchable output 5 V / 9 V / 12 V – perfect for COMET devices
• 12 V for Ethernet transmitters (Txxxx series)
• 5 V for multiloggers
• Coaxial connector 5.5 × 2.1 mm – fits all COMET devices
• Supports up to 15.4 W – sufficient power for all models
• Plug & Play – no configuration needed
• Compact & durable – suitable for control cabinets and field installation
• Operating temperature: 0 to +40 °C
• Original TP-Link quality – recommended by COMET

Technical data TL-POE10R:

• Input: IEEE 802.3af compliant
• Output: switchable 5 V DC, 9 V DC, or 12 V DC
• Maximum power: up to 15.4 W (802.3af standard)
• Output connector: Coaxial 5.5 × 2.1 mm (+ inner pin)
• Operating temperature: 0 to +40 °C
• Dimensions: compact (approx. 80 × 56 × 25 mm)
• Weight: approx. 80 g
• Warranty: 3 years (through COMET)

Perfect for:

• COMET Ethernet transmitters – Txxxx series
• COMET multilogger series
• PoE-powered monitoring stations without separate power supply
• Server rooms, technical rooms, and warehouses
• Building automation and BMS systems
• Outdoor and field installations (with weatherproof housing)
• Long cable installations (up to 100 m PoE)
• Retrofitting of non‑PoE devices

Installation & commissioning – simple and quick

1. Insert the PoE cable from the switch into the TL‑POE10R.
2. Set the DIP switch to 12 V (for transmitters) or 5 V (for multiloggers).
3. Connect the coaxial cable from the splitter to the device.

Summary:

• The TL‑POE10R Power‑over‑Ethernet (PoE) splitter is supplied by TP‑Link.
• This adapter is required for powering Ethernet transmitters or multiloggers via a PoE switch.

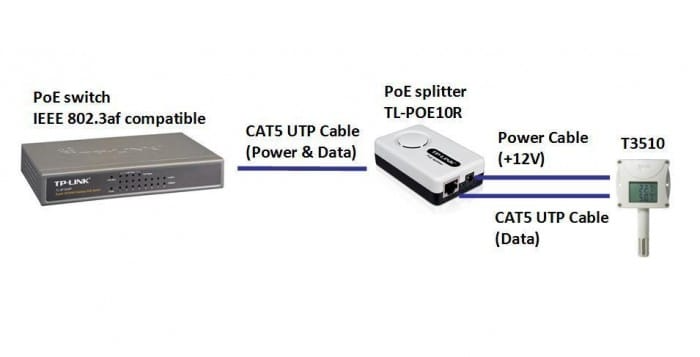

• The correct output voltage must be selected using the switch: 12 V for Txxxx transmitters, 5 V for multiloggers.

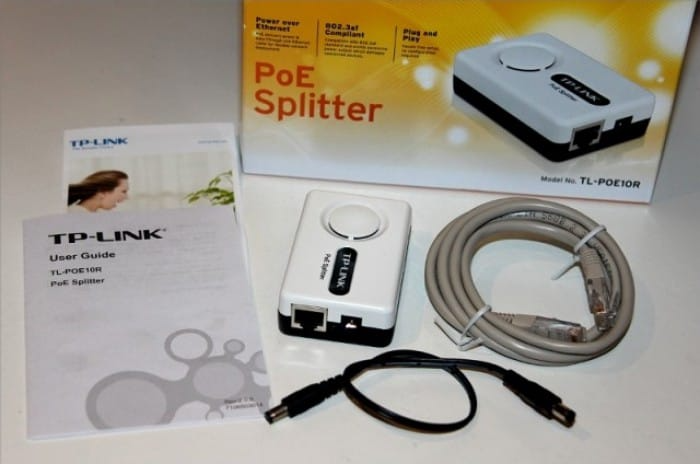

Scope of delivery:

• TL‑POE10R Splitter
