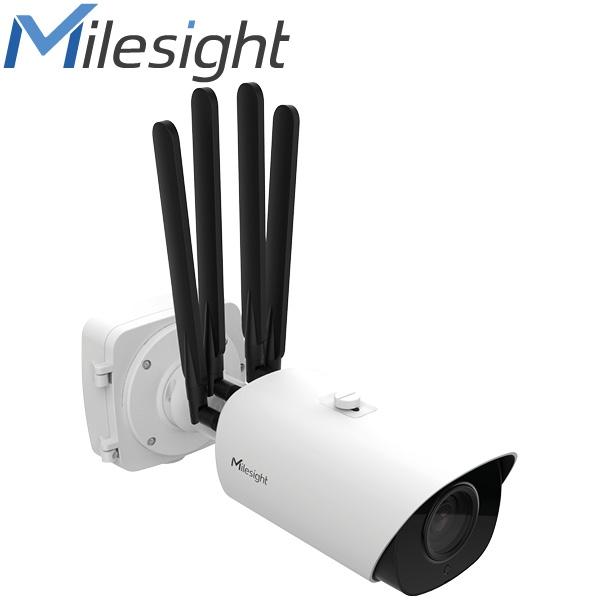

Milesight ISIS-MS-C8266-X4GPC 8MP 4K 5G Camera

Milesight ISIS-MS-C8266-X4GPC 8 Megapixel 4K Ultra HD 5G IP Camera with Mobile Network Connection, IR up to 180 Meters, 4x Motor Zoom, WDR 120 dB and AI Analysis. Including Junction Box and 5G Antennas

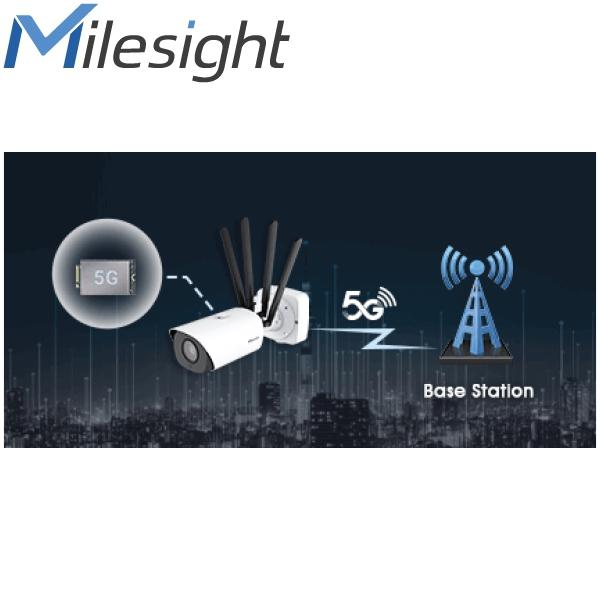

The Milesight ISIS-MS-C8266-X4GPC is the powerful 8 Megapixel 4K Ultra HD 5G IP Camera. It delivers video images in 4K Ultra High Definition resolution with 3840 by 2160 pixels and 25 frames per second. The camera transmits video signals wirelessly directly via the 5G mobile network with SIM card. Elaborate network cabling is completely eliminated. Thanks to the high bandwidth and enormous network capacity of 5G, the camera is ideal for streaming High Definition videos over mobile Internet. 5G offers a significantly shorter response time compared to previous generations. Mobile connection via P2P simplifies remote access. For the mobile app, only a QR code needs to be scanned. Alternatively, the camera also supports DynDNS.

The camera masters extreme lighting situations with WDR up to 120 dB. Milesight Super WDR Pro outputs the data for up to three frames with different exposure times line by line and combines them into a clear image. This provides better image quality especially in low light. Automatic day-night switching delivers clear color images during the day and high-resolution black-and-white images at night with IR illumination up to 180 meters. Backlight compensation and highlight suppression prevent glare and ensure perfect visibility. Noise reduction reduces image noise in low light and saves storage space. H.265+ video codec reduces network traffic and significantly increases recording duration. Modern compression transmits only image changes, which increases the recording duration by up to 90 percent. The lens has a 4x optical zoom from 8 to 32 millimeters. This corresponds to a horizontal viewing angle of 44 to 13 degrees. If you want to view a distant area, you can easily zoom in on the desired section. Thanks to autofocus, focusing is done automatically.

The AI-based video analysis functions reliably detect people and vehicles. Advanced motion detection tolerates recurring movements such as rain, snow, or wind. Line crossing triggers an alarm as soon as an object crosses a line. Area entry and area exit report events. People-vehicle differentiation prevents false alarms. Suspicious objects and missing objects are detected. Tampering detection sends an alarm if the camera is rotated or covered. People counting provides current people counts and visitor statistics. Heatmap measures frequently visited areas. Corridor mode enables effective monitoring of vertical areas. Region of Interest saves bandwidth and storage. Privacy masking covers sensitive zones. The camera is compatible with ONVIF, RTSP, and many other protocols. This allows seamless integration into existing systems.

High light sensitivity ensures excellent color images even with little ambient light. The 2-zone infrared illumination provides optimal illumination in near and far ranges. Two LEDs are for the near range with wide-area illumination. At high zoom factor, four LEDs work for narrower illumination up to 180 meters. The integrated microphone offers an advanced codec for clear sound. The built-in microSD card slot enables local storage up to 256 GB. The camera has IP67 protection rating and 4 kV surge protection. This protects it against moisture, dust, and voltage spikes and allows use indoors and outdoors. NDAA compliance facilitates collaboration with authorities from the USA. Including junction box and 5G antennas for easy mounting and immediate wireless connection. Smarthome integration enables HTTP notifications to home automation on alarms. CMS software allows central management of all cameras with live images on up to four monitors. SIP supports integration into IP phone systems.

Why the Milesight ISIS-MS-C8266-X4GPC is the best 8 Megapixel 4K 5G IP Camera:

• 8 Megapixel 4K Ultra HD with 3840 by 2160 at 25 frames per second
• 5G mobile network connection with SIM card for wireless transmission
• IR illumination up to 180 meters with 2-zone illumination
• 4x motor zoom from 8 to 32 millimeters with autofocus
• WDR up to 120 dB and Super WDR Pro for clear images in any light
• AI-based video analysis with people counting and many functions
• H.265+ video codec for optimal bandwidth and storage savings
• P2P mobile app with QR code for easy remote access
• microSD card slot for local recording up to 256 GB
• IP67 weatherproof and 4 kV surge protection
• Integrated junction box and 5G antennas
• Compatible with ONVIF and many protocols

Technical Specifications:

• Resolution: 3840 by 2160 at 25 frames per second
• Zoom: 4x motor zoom from 8 to 32 millimeters
• IR Range: up to 180 meters
• WDR: up to 120 dB
• Day-Night Switching: Automatic
• 5G Frequency Bands: n1 n2 n3 n5 n7 n8 n12 n20 n28 n41 n66 n71 n77 n78 n79 and many LTE bands
• Compression: H.265+
• Noise Reduction: 2D and 3D DNR
• Backlight Compensation: BLC and HLC
• Protocols: ONVIF RTSP DynDNS and many more
• Storage: microSD card slot up to 256 GB internal
• Housing: IP67 weatherproof
• Dimensions: 134 by 126 by 320 millimeters without antennas
• Weight: 1.608 kilograms

Perfectly Suited for:

• Construction sites and remote locations
• Highway and road surveillance
• Industry and logistics centers
• Public buildings and schools
• AI-based intelligent video surveillance without cables
• Integration into existing ONVIF systems
• Remote monitoring with 5G and P2P app
• Mobile deployments with SIM card

Easy Mounting and Commissioning

The camera is quickly and securely installed with the integrated junction box and 5G antennas. Insert SIM card (not included) and stream wirelessly via 5G immediately. PoE power supply makes additional cables unnecessary. Configuration via web interface or P2P app takes just a few minutes. The smart AI analysis immediately detects relevant events and sends real-time notifications. Local storage on microSD card up to 256 GB secures recordings even in case of network failure. The 2-zone infrared illumination ensures perfect night vision up to 180 meters. Including junction box and antennas simplifies mounting and later maintenance work.

Scope of Delivery:

• Camera including junction box - WITHOUT SIM CARD
